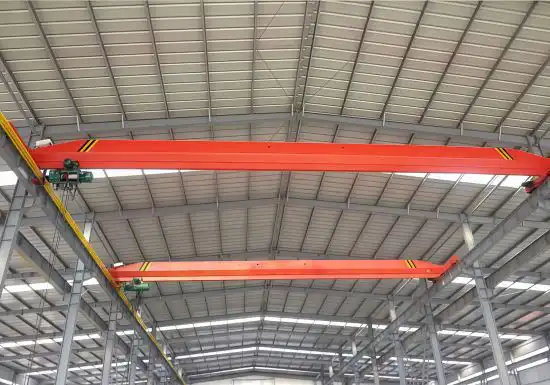

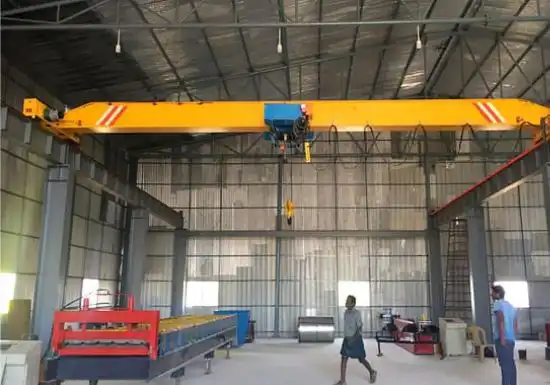

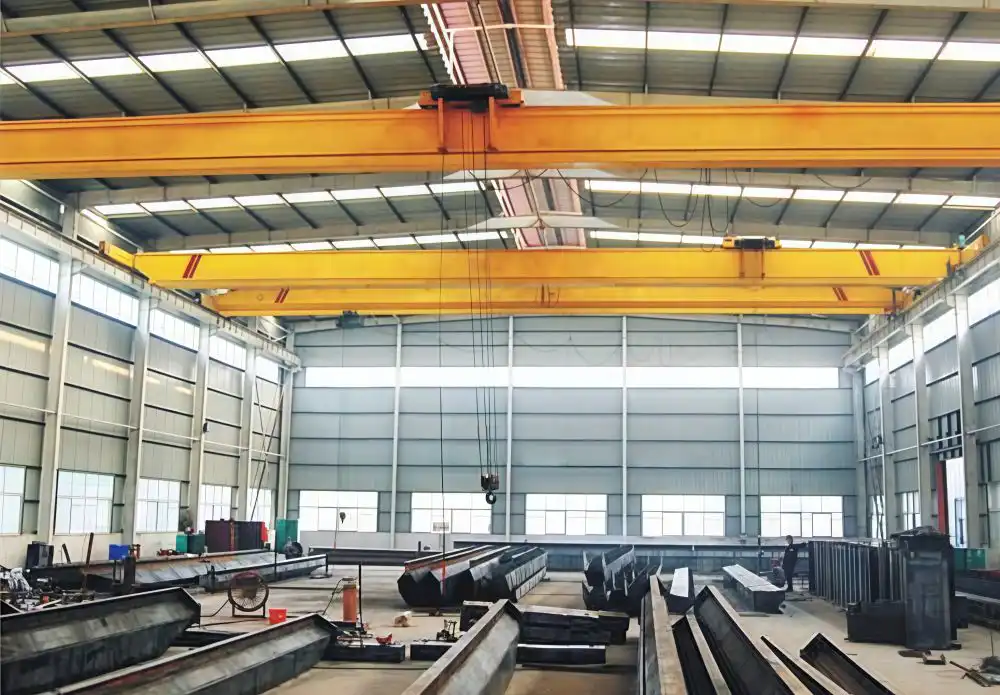

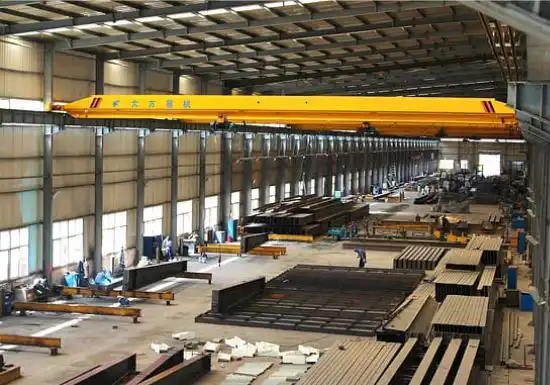

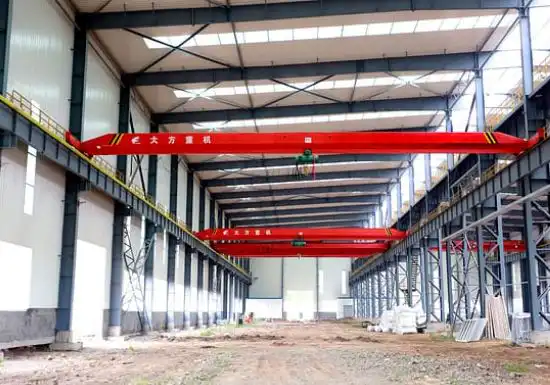

Single Girder Overhead Crane
Designed for light to medium-duty lifting, our single girder overhead cranes offer a compact, low-headroom solution that maximizes your facility’s vertical space.
Key features include Variable Frequency Drive (VFD) controls for smooth, anti-sway operation and high-strength box-girder structures. As a direct manufacturer, we eliminate the middleman. This means you get customized engineering, strict CE/ISO-certified quality control, and faster delivery at competitive factory prices.
These versatile bridge cranes are widely applied in manufacturing workshops, warehouses, assembly lines, and equipment maintenance facilities to streamline daily material handling.
Send Inquiry NowGet A Free Quote Now
Single Grider Overhead Crane
Capacity: Up to 12.5t
Span Length: Up to 25.5m
Duty Group: A3-A5
Working Environment Temperature: -25℃~+40℃, relative humidity ≤85%
Applications: Suitable for warehouses, material stocks and general factory site.
Reference Price Range: $2,000-50,000/set
What is a Single Girder Overhead Crane?
A single girder overhead crane is a specialized material handling system designed to provide three-axis movement across a rectangular facility bay. It is widely recognized as the most cost-effective lifting solution for capacities up to 20 tons and spans up to 18 meters. Commonly used in workshops, warehouses, and material yards, these cranes are typically categorized into LD standard, low-headroom, and LDP types to accommodate different building clearances.
Core Components & How It Works:
- Bridge Girder: The principal horizontal beam that spans the width of your facility. It supports the lifting mechanism and is structurally engineered to carry heavy loads with minimal deadweight.
- End Trucks (End Carriages): Located on both ends of the bridge girder, these trucks house the drive wheels. They travel along elevated runway beams, allowing the crane to access the entire length of the building.
- Lifting Mechanism (Hoist): The electric hoist is mounted on the main girder and handles the actual lifting. We configure our cranes with standard CD (single lifting speed) or MD (double lifting speed) hoists, available in two primary types:
- Wire Rope Hoists: Highly durable and engineered for long-term, reliable performance in heavier applications.
- Chain Hoists: The perfect choice for lower capacity, lighter-duty projects where upfront cost and compact size are the primary deciding factors.
Applications of Single Girder EOT Crane
Due to their compact footprint and efficient performance, our single girder overhead cranes are widely adopted across multiple industries for daily material handling. Key applications include:
- Manufacturing & Fabrication: Moving steel materials and positioning heavy parts for welding or machining.
- Warehousing & Logistics: Streamlining the loading, unloading, and indoor transit of bulk goods.
- Assembly Lines: Providing precise lifting for component installation in automotive and machinery production.
- Maintenance Facilities: Safely lifting heavy motors, pumps, and machinery for routine service and repairs.
Price of Single Girder Bridge Crane
Pricing ranges from $2,000 (1-ton basic setups) to $50,000 (20-ton, wide-span VFD systems). To accurately assess your investment, consider these concrete cost and ROI metrics:
- Upfront Steel Savings: The lower deadweight reduces wheel loads, saving you up to 20% on runway beams and facility structural reinforcement.
- Operating Costs: VFD-controlled hoists reduce brake pad wear by 50% and consume minimal energy (typically 3-5 kW/h), drastically cutting maintenance bills.
- 12-18 Month ROI: By replacing manual lifting and expensive forklift rentals (saving ~$1,500/month), the equipment typically pays for itself in under a year and a half.
Configurations of Single Beam Bridge Crane
| NO. | Item | Brand |
| 1 | Hoist Electrical | Schneider Brand |
| 2 | Motor(Hoist Lift) | ABM |
| Reducer(Hoist Lift) | ||
| Brake(Hoist Lift) | ||
| 3 | Motor(Hoist & Crane Travel) | SEW Three-In-One |
| Reducer(Hoist & Crane Travel) | ||
| Brake(Hoist & Crane Travel) | ||
| 4 | Inverter | Yaskawa Brand |
Types of Single Girder Overhead Cranes For Sale
We offer four specialized configurations to perfectly match your building’s structural limits and lifting requirements.

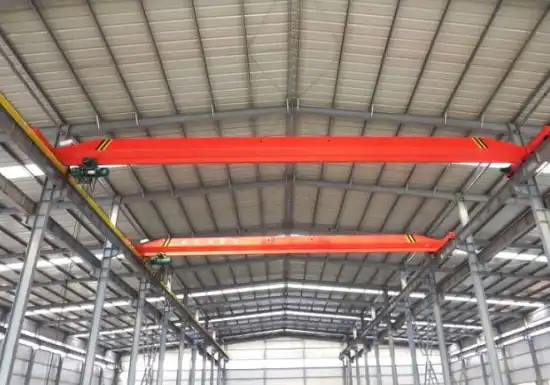

LD Standard Single Girder Overhead Crane
The most cost-effective workhorse for general industrial applications.
- Design & Specs: Features a U-shape main girder (formed in one piece to eliminate stress concentration points) paired with a standard CD/MD electric hoist running below the beam.
- Ideal For: Standard workshops and manufacturing plants with adequate ceiling clearance.
- Key Advantage: Highly economical, easy to maintain, and delivers exceptionally stable performance for daily material handling.

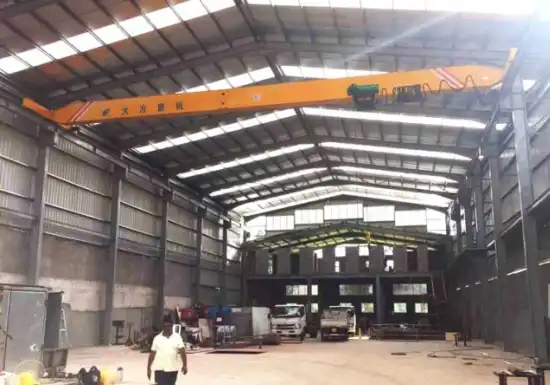

Low Headroom Single Girder Overhead Crane
Engineered to maximize vertical hook height in restricted spaces.
- Design & Specs: Utilizes a rigid box-type girder. Instead of hanging far below, the specialized low-headroom hoist is compactly integrated alongside/under the girder to save vertical space.
- Ideal For: Existing buildings with limited upper space where structural modifications are impossible or too costly.
- Key Advantage: Significantly increases the effective lifting height (hook path) without requiring a taller building, offering a highly space-efficient lifting solution.
LDP (Side-Mounted) Single Girder Overhead Crane
The ultimate solution for maximizing lift in ultra-low clearance environments.
- Design & Specs: Built with a strong box girder. Unlike standard models, the LDP electric hoist travels on one side of the main girder, pulling the lifting mechanism up to the highest possible point.
- Ideal For: Facilities with severe overhead space limitations that still demand the absolute maximum lifting height.
- Key Advantage: Provides unparalleled vertical clearance. It effectively bypasses overhead obstacles while maintaining excellent load stability.
Underslung (Suspended) Single Girder Overhead Crane
A column-free lifting system that maximizes your floor space.
- Design & Specs: Instead of traveling on top of supporting columns, the crane bridge travels underneath the runway beams, which are typically suspended directly from the building’s roof structure.
- Ideal For: Thermal power plants, maintenance bays, and facilities where installing floor columns would disrupt operations.
- Key Advantage: Eliminates the need for bulky support columns, saving structural steel costs and keeping your factory floor 100% clear for production.

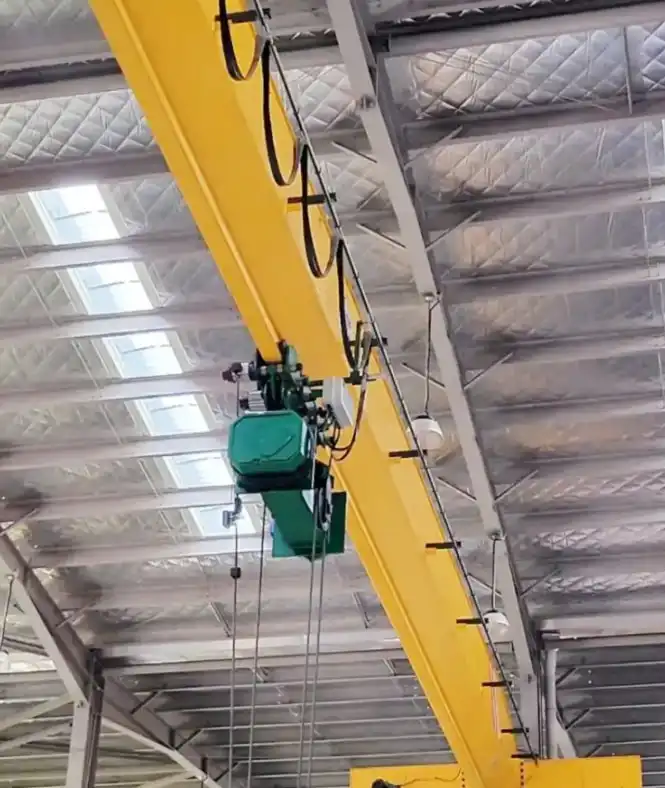

PRODUCT FEATURES
Unique Features
Optimized Low-Deadweight Structure: Engineered using FEA (Finite Element Analysis), our box and U-type girders offer maximum rigidity with minimal weight. This reduces wheel pressure on your runways, saving you money on building structural reinforcement.
Precision VFD Control (Anti-Sway): Equipped with Variable Frequency Drives (VFD) for both hoisting and traveling motions. This ensures stepless speed regulation, prevents load swing during transport, and allows for millimeter-level positioning accuracy.
Comprehensive Safety Systems: Safety isn’t an add-on; it’s built-in. Standard configurations include weight overload limiters, upper/lower travel limit switches, emergency stop controls, and heavy-duty, fast-response braking systems to protect your personnel and products.
Low-Maintenance Drive Units: Powered by high-efficiency motors with self-adjusting brakes and fully enclosed gearboxes. We use standardized, plug-and-play electrical components (like Schneider/Siemens) to guarantee easy troubleshooting and minimal downtime.
Single Girder EOT Crane Design
A reliable lifting system starts with professional engineering. Our approach to single girder overhead crane design focuses on safety, maximum space utilization, and cost-efficiency.
Our core design advantages include:
- Advanced Optimization: Utilizing FEA software, our single girder eot design guarantees maximum load-bearing capacity with minimal deadweight, reducing stress on your building.
- Global Standards:Â All structural and electrical designs strictly comply with international FEM, DIN, and ISO standards.
- Tailored Engineering:Â We don’t just sell standard sizes. We calculate your exact span, headroom, and duty cycle to design a blueprint that perfectly fits your existing layout.
Component Details & Engineering Advantages
Built for longevity: How our component design minimizes downtime and maintenance costs.
Main Girder (Fabrication & Finish)
Manufactured from high-strength Q235B/Q355B steel. We use automatic submerged arc welding (SAW) for flawless, deep-penetration joints. Before painting, the entire girder undergoes Sa2.5 shot blasting to completely remove rust, ensuring superior paint adhesion and long-term corrosion resistance, even in harsh environments.
Girder Section (Structural Profile)
Optimized via Finite Element Analysis (FEA), the U-shape or box-girder cross-section maximizes torsional rigidity while minimizing deadweight. Formed in one continuous process, this profile eliminates stress concentration points, ensuring the structure won’t deform under heavy, repetitive loads.
End Beam (End Carriage)
Constructed from rigid rectangular steel tubes. The wheel bores are CNC-machined in a single setup to guarantee absolute alignment. This high-precision engineering permanently solves the “rail gnawing” (wheel-flange wear) problem, ensuring smooth traveling and extending the life of both wheels and runway rails.
Electric Hoist
Features a highly integrated, low-headroom design to maximize your hook path. Driven by a heavy-duty motor with a fully enclosed gearbox and self-adjusting brake, it ensures precise, shock-free load positioning. Its modular construction makes routine inspections and wire rope/chain replacements incredibly fast.
Cable & Festoon System
Power is reliably delivered via flame-retardant, high-flexibility flat cables moving on a galvanized C-track festoon system. Compared to round cables, flat cables provide a far superior bending radius and heat dissipation, completely preventing tangling and internal wire breakage during high-frequency operations.

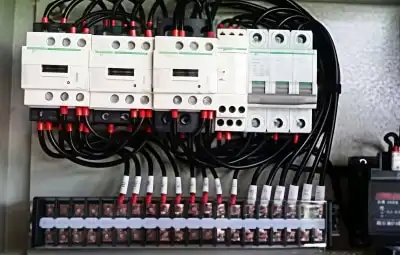

Electrical Equipments
Housed in IP54/IP55-rated enclosures to resist dust and moisture. We exclusively use globally recognized components (e.g., Schneider, Siemens) to ensure ultimate reliability. Neatly channeled wiring and clear terminal labeling mean your local technicians can troubleshoot or replace parts effortlessly without relying on factory support.
Benefits of Our Service
At SuniverseTech, we place a high emphasis on service because we understand that our relationship with our customers extends far beyond the point of sale. We believe in fostering long-term partnerships, built on trust and mutual success.
Customized Solutions
Fast Delivery
Expert Technical Support
Training and Education
Preventive Maintenance
24/7 Customer Support
Single Girder vs. Double Girder Overhead Cranes
One of the most common questions from facility managers is whether to invest in a single girder or a double girder crane system. While both serve the same fundamental purpose, the choice entirely depends on your facility’s dimensions, lifting capacity, and operational frequency.
Why Choose a Single Girder Crane?
- Cost-Effective: Because it requires fewer materials and less complex manufacturing, the upfront cost is significantly lower.
- Lighter Building Loads: The reduced deadweight means less stress on your building’s structural columns and runway beams, saving you substantial money on facility construction or reinforcement.
- Faster Installation: Simplified design allows for quicker assembly and commissioning, minimizing operational downtime.
- The Sweet Spot: It is the absolute best choice for light-to-medium operations, typically lifting up to 20 tons with spans up to 18-20 meters.
When Do You Need to Upgrade to a Double Girder Crane?
You should consider a double girder system only if your operational needs exceed the limits of a single beam:
- Heavy Capacities & Wide Spans: Required for loads exceeding 20 tons or exceptionally wide building spans (over 20 meters) where a single beam would deflect (bend) too much.
- Maximum Hook Height Needed: On a single girder, the hoist hangs underneath the beam. On a double girder, the hoist trolley sits on top of the beams, giving you several extra feet of vertical lifting height.
- Continuous Heavy-Duty Use: Essential for 24/7 continuous production (like steel mills or heavy foundries) requiring A6-A8 duty classes.
Understanding Crane Duty Cycles (Working Class)
A common mistake in crane procurement is looking only at the lifting capacity (tonnage). However, a 5-ton crane used once a week for maintenance is engineered completely differently from a 5-ton crane used 10 hours a day on an assembly line.
To ensure maximum motor lifespan and prevent premature mechanical failure, we strictly follow ISO/FEM standards to configure the correct duty cycle (working class) for your specific application:
- Light Duty (ISO A3 / FEM 1Bm):
- Application: Equipment maintenance bays, pump stations, and motor repair shops.
- Usage: Infrequent lifting, slow speeds, and long idle periods. The crane is mainly used for standby positioning rather than continuous transport.
- Medium Duty (ISO A4 – A5 / FEM 2m):
- Application: General manufacturing workshops, machining centers, fabrication shops, and logistics warehouses.
- Usage: The standard workhorse. Designed for regular, daily use, handling typical loads (often 50% of the maximum capacity) with moderate operating speeds.
Why this matters: Tell us your estimated lifts per hour and working hours per day. Our engineers will size the precise motors, gearboxes, and electrical contactors so you don’t overpay for unnecessary heavy-duty specs, nor suffer from downtime due to under-specced components.
Custom Configurations & Smart Add-ons
While our standard single girder overhead cranes are perfect for normal indoor workshops, many industries require specialized protection and smart controls. We provide fully customized add-ons to meet your exact environmental and safety requirements:
1. Harsh Environment Protections:
- Outdoor Configurations: If your crane operates in an open yard, we upgrade it with marine-grade anti-corrosive epoxy paint, stainless steel fasteners, and IP55+ rain covers for all hoists, motors, and electrical cabinets. Wind speed alarms are also equipped for safety.
- Explosion-Proof (Ex-Proof): For chemical plants, oil & gas facilities, or paint shops, we provide ATEX/IECEx certified explosion-proof components, spark-resistant bronze wheels, and fully sealed control boxes to eliminate fire hazards.
2. Smart & Safe Control Systems:
- Radio Remote Controls: Upgrade from the standard wired pendant to a wireless remote control (featuring top brands like Telecrane or HBC). This allows the operator to walk freely and stay at a safe distance from heavy or hazardous loads.
- Anti-Collision Sensors: If you have multiple overhead cranes running on the same runway, we install laser or photoelectric anti-collision limiters to automatically stop the cranes before they crash into each other.
- Load Weighing Displays: Integrated digital scales on the hook or bottom block provide operators with real-time weight data, preventing dangerous overloading and assisting in material inventory management.
