Self Loading Mixer
SuniverseTech’s self loading mixers – designed to revolutionize your construction experience.
We offer a diverse range of models including the compact 1.5-2.6m³ series, the versatile 3.5-4m³ series, and the heavy-duty 5-6.5m³ series.
Our machines stand out with their unique self-loading function, allowing for increased efficiency and reduced labor costs. Additionally, they boast superior mixing performance and durability, ensuring your projects are completed with precision and speed.
Don’t miss the opportunity to elevate your construction capabilities. Contact us now to discover the perfect model tailored to your needs and let our self loading concrete mixers redefine your construction experience.
Send Inquiry NowGet A Free Quote Now
Quick Guide
Start From
$
1,000
PRODUCTS
Self Loading Concrete Mixer
SuniverseTech’s self loading transit mixer is an innovative and efficient piece of machinery, designed to simplify the concrete mixing process. This machine combines the functions of a concrete mixer and a loader, essentially automating the process of mixing, transporting, and pouring concrete.
6.5m³
Max Discharge Capacity
12520kg
Max Curb Weight
Recommended Models:
SY-6.5 self load mixer for large projects
SY-2.0 self load mixer for small projects
Get A Free Quote Now →Types of Self Loading Concrete Mixers For Sale
Choose SuniverseTech’s self loading concrete mixer for its superior efficiency, consistent performance, and customizable capacities. It’s an investment in innovation, productivity, and cost-effective concrete mixing solutions for your projects.
Explore our range of hot models of Self Loading Concrete Mixers with pumps, each designed to meet diverse project requirements:
- SY-1.5 Self Loading Mixer: Ideal for smaller projects, offering compactness and efficiency.
- SY-2.0 Self Loading Concrete Mixer Truck: Combines mobility and performance for medium-sized projects.
- SY-2.6A/B/C/D Self Loading Cement Mixer: Versatile and customizable, suitable for a variety of applications.
- SY-3.5A/B/C/D Self Loading Transit Mixer: Balances capacity and mobility for larger projects.
- SY-4 All Terrain Concrete Mixer: Engineered for challenging landscapes, ensuring consistent operation.
- SY-5.5 Self Propelled Concrete Mixer: High-capacity mixer for extensive projects, offering autonomous operation.
- SY-6.5 Self Loading Mobile Concrete Mixer: Our largest capacity mixer, designed for demanding, large-scale projects.
SuniverseTech’s Self Loading Concrete Mixers are an investment in advanced technology, robust performance, and project-specific customization. Streamline your concrete mixing process with our innovative solutions, ensuring project success and cost-effectiveness.
Tank capacity: 1.93m³
Tank discharge: 1.5m³
Curb weight: 4500kg
SY-1.5 offers convenient portability and self-sufficiency, enhancing efficiency for small to medium construction projects.
Batch discharge (discharge volume): 2.0m³
Concrete production: 9m³/h
Mixing drum capacity: 2.68m³
SYP-2.0 combines increased capacity with automation for streamlined, cost-effective on-site concrete production.
Batch discharge (discharge volume): 5.5m³
Concrete production: 20m³/h
Mixing drum capacity: 7.8m³
SY-5.5 is a high-efficiency, labor-saving mixer that maximizes productivity, swiftly advancing project completion.
Batch discharge (discharge volume): 6.5m³
Concrete production: 24m³/h
Mixing drum capacity: 9m³
SY-6.5 self-loading mixer offers exceptional volume capacity and automation, significantly reducing labor while boosting on-site efficiency.
PRODUCTS DETAILS
We Sell Various Models of Self Load Mixers For You
Self-loading concrete mixers automate mixing, transporting, and pouring concrete, ideal for construction projects, road repairs, and infrastructure work. They streamline operations, enhance productivity, and ensure consistent quality.
Happy Customers
98%
Self Loading Concrete Mixer Truck
Models:
SY-1.5 ~SY-6.5
Max Discharge Capacity
1.5m³ ~ 6.5m³
Max Curb Weight
12520kg
SuniverseTech’s Self-Loading Concrete Mixers bring a unique blend of efficiency, automation, and versatility to the construction field. These innovative machines integrate the functions of mixing, transporting, and pouring concrete, effectively eliminating the need for separate machinery and manual labor. This, in turn, significantly reduces operation time, labor costs, and potential errors, enhancing overall project productivity and cost-effectiveness.
Whether it’s for small-scale building projects or extensive infrastructure work, our self-loading mixers provide a tailor-made solution, adapting to diverse terrain and project requirements. With SuniverseTech, experience the future of concrete mixing today.
Recommended Models:
SY-1.5 Self Loading Mixer
Tank Capacity: 1.93m³
Tank Discharge: 1.5m³
Curb Weight: 4500kg
SY-2 Self Loading Mixer
Tank Capacity: 3.45m³
Tank Discharge: 2m³
Curb Weight: 6200kg

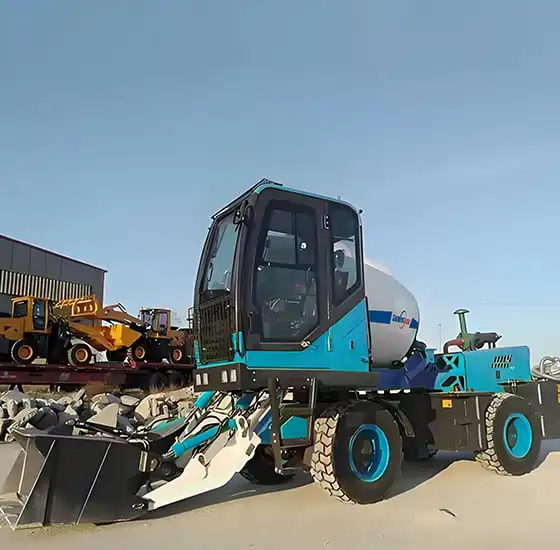

SY-2.6A Self Loading Mixer
Tank Capacity: 3.95m³
Tank Discharge: 2.6m³
Curb Weight: 6500kg

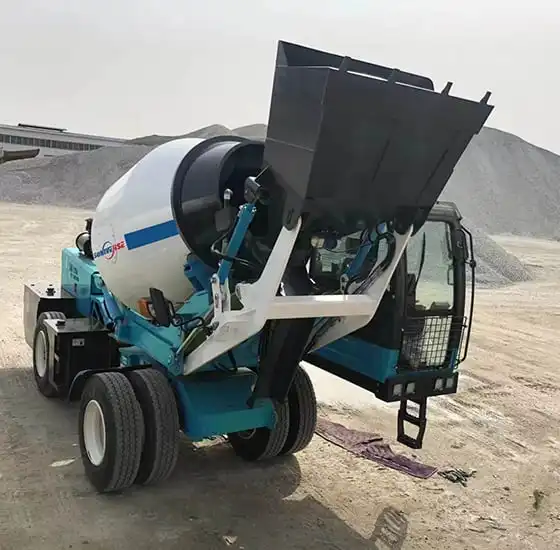

SY-2.6B Self Loading Mixer
Tank Capacity: 3.95m³
Tank Discharge: 2.6m³
Curb Weight: 6500kg

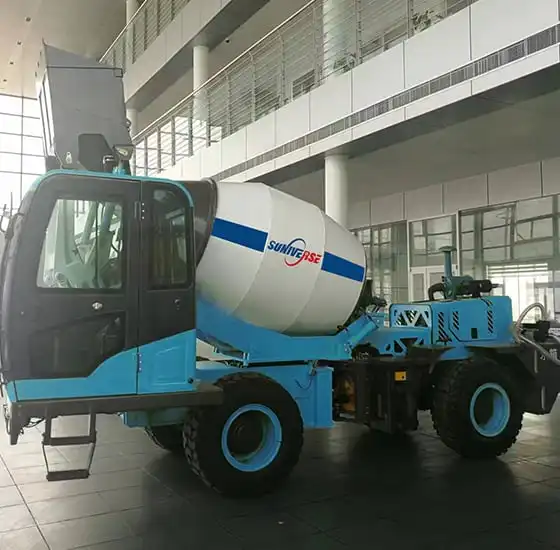

SY-2.6C Self Loading Mixer
Tank Capacity: 3.95m³
Tank Discharge: 2.6m³
Curb Weight: 6500kg

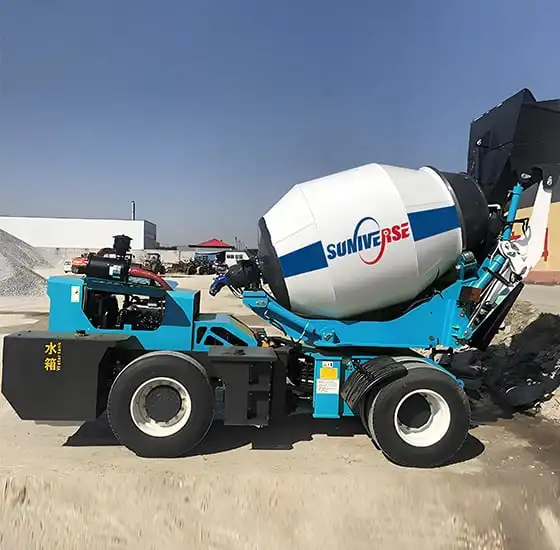

SY-2.6D Self Loading Mixer
Tank Capacity: 3.95m³
Tank Discharge: 2.6m³
Curb Weight: 6500kg

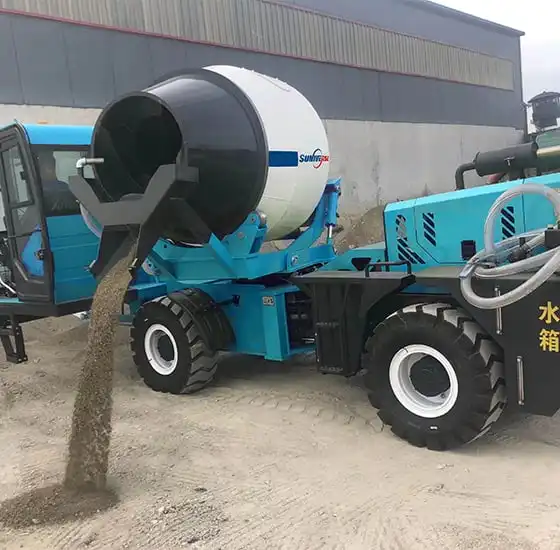

SY-3.5A Self Loading Mixer
Tank Capacity: 5.5m³
Tank Discharge: 3.5m³
Curb Weight: 8300kg

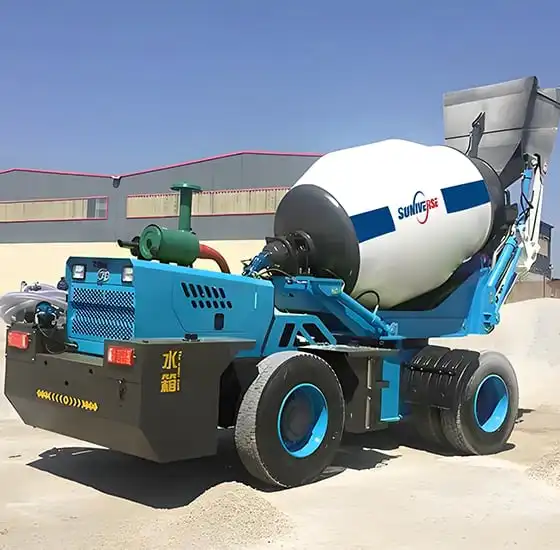

SY-3.5B Self Loading Mixer
Tank Capacity: 5.5m³
Tank Discharge: 3.5m³
Curb Weight: 8300kg

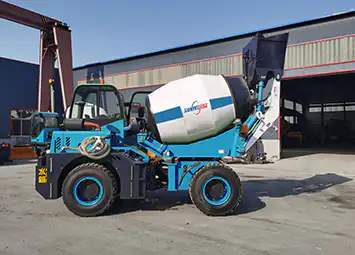

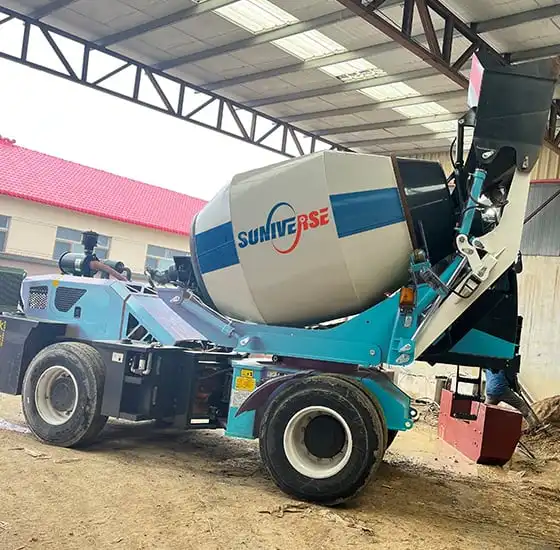

SY-3.5C Self Loading Mixer
Tank Capacity: 5.5m³
Tank Discharge: 3.5m³
Curb Weight: 8300kg

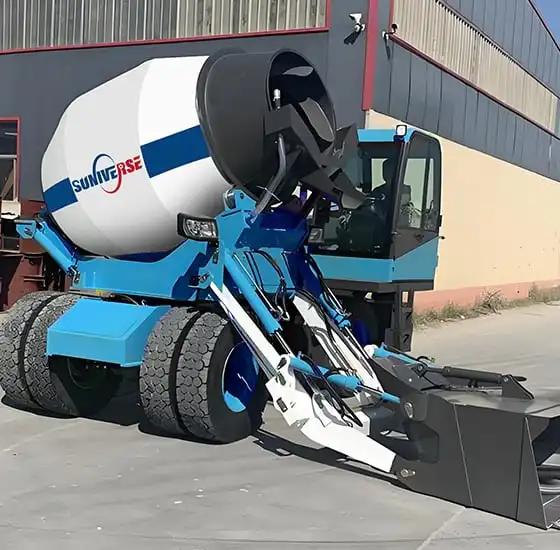

SY-3.5D Self Loading Mixer
Tank Capacity: 5.5m³
Tank Discharge: 3.5m³
Curb Weight: 8300kg

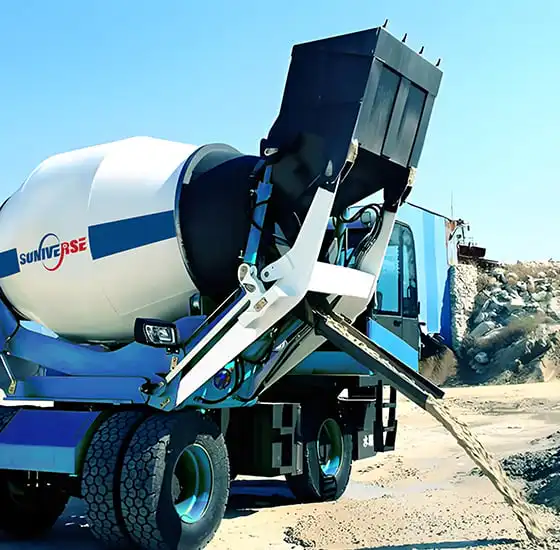

SY-4.0 Self Loading Mixer
Tank Capacity: 6.64m³
Tank Discharge: 4m³
Curb Weight: 9000kg

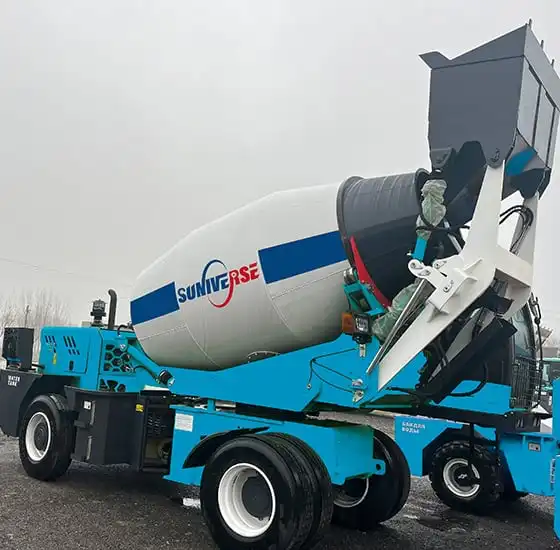

SY-4S Self Loading Mixer
Tank Capacity: 6.64m³
Tank Discharge: 4m³
Curb Weight: 9000kg

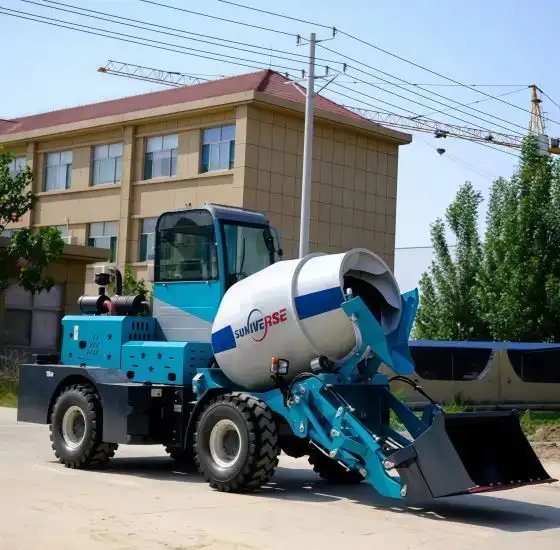

SY-5 Self Loading Mixer
Tank Capacity: 8.28m³
Tank Discharge: 5m³
Curb Weight: 10500kg

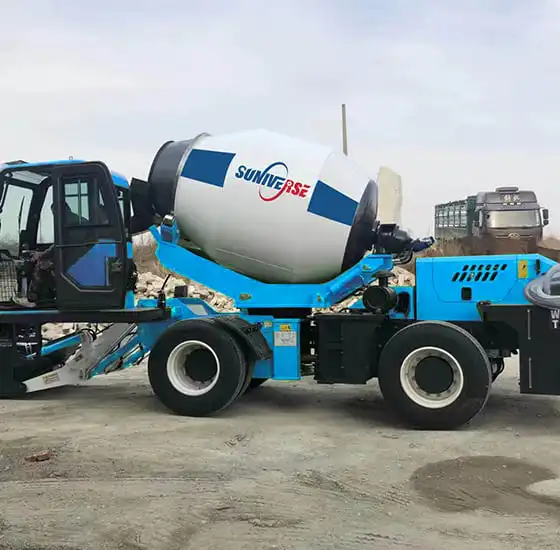

SY-5.5 Self Loading Mixer
Wheel Base: 3350mm
Tank Discharge: 5.5m³
Curb Weight: 11200kg

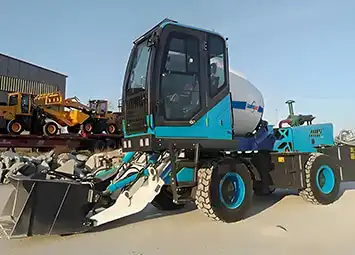

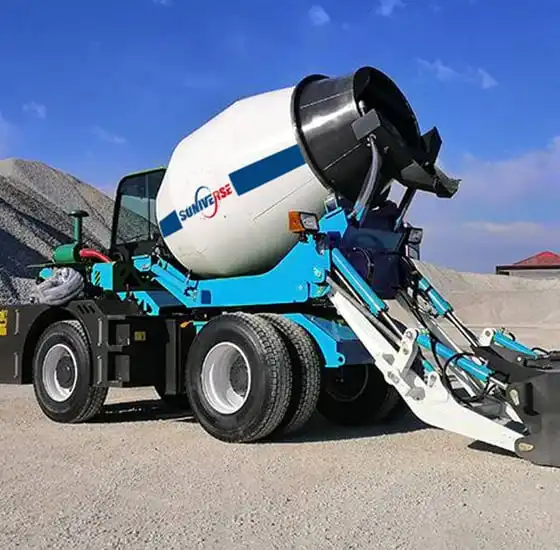

SY-6.5 Self Loading Mixer
Wheel Base: 2850mm
Tank Discharge: 6.5m³
Curb Weight: 13000kg

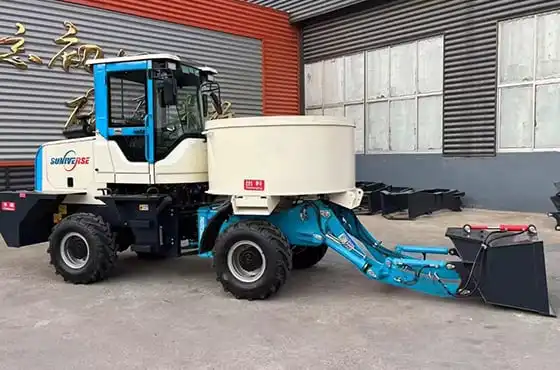

Self Loading Pan Mixer
Models:
SYP-1.6 ~ SYP-2.0
Max Discharge Capacity
1.6m³ ~ 2.0m³
Max Speed
30km/h
SuniverseTech’s Self-Loading Pan Mixers revolutionize concrete production with their compact design and automated functionality.
These mixers offer consistent, high-quality concrete on-demand, reducing waste and time delays. Ideal for smaller projects or tight spaces, they blend efficiency, precision, and convenience, transforming the way you handle concrete mixing tasks.
Recommended Models:

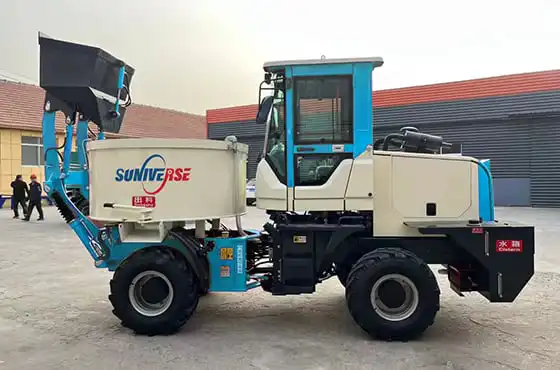

SYP-1.6 Self Loading Pan Mixer
Max Discharge Output: 1.6m³
Maximum Speed: 30km/h

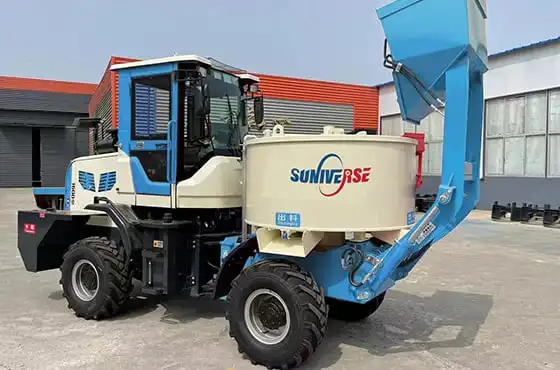

SYP-2.0 Self Loading Pan Mixer
Max Discharge Output: 2.0m³
Maximum Speed: 30km/h
Why Invest In a Self-Loading Concrete Mixer?
Purchasing a self-transit mixer is not a small investment but you will gain all the following returns instantly:
Saves Time and Labor: This 3-in-1 functionality allows one person to complete the entire concrete mixing and loading process. You save the manpower needs of 5-6 additional laborers per day. The automated batching and loading are accomplished in minutes, drastically cutting down operation time. This frees up precious hours for other construction tasks.
Lowers Costs: By needing less equipment and manpower, a self-loading mixer cuts down costs substantially. No expenditure is needed for separate concrete mixers or trucks. It runs on an internal diesel engine, eliminating external electricity needs. High-quality imported hydraulics ensure a long working life span, saving future maintenance and repair costs.
Enhances Productivity and Profits: The versatility, speed, and cost savings lead to higher productivity. More efficient concrete supply leads to faster construction turn-around, which boosts profits. The ability to quickly transport and access difficult sites adds to productivity gains. High-quality concrete produced on-site in quick time is a big advantage.
Easy and Safe Operation: Despite advanced functionality, the machine is very easy to operate with a single control lever. Comfortable, air-conditioned cab keeps driver fatigue at bay. Safety is enhanced through anti-roll, anti-fall systems, and touchscreen camera monitoring. Sure-footed driving on any terrain increases safety.
Reliability and Durability: Built on an imported, high-grade chassis frame ensures ruggedness. Quality components increase longevity and uptime. Low noise and emission engines allow functioning in inhabited areas. The fuel efficiency of the powerful engine keeps running costs down even in high usage.
Specifications of Self Feeding Concrete Mixer

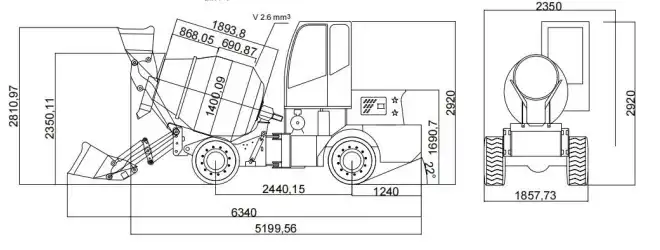

Detailed Specifications of 1.5m³Self Loading Mixer
| Configuration Item | Specification | Configuration Item | Specification |
| Tank/Power System | Standard | Driving/Operating System | Standard |
| Engine Type | Yunnei 490 Turbocharged | Cab Location | Rear |
| Rated Power (KW) | 58kw | Air Conditioner | Optional |
| Variable Torque Box Model | JBJ-278 Split Torque Converter | Top Speed (km) | ≤ 35km |
| Drive Axle | Full-time Four-wheel Drive JBJ-8T | Slewing Bearing | – |
| Tyre Size and Quantity | 23.5/70-16, 4 Wheels | Hydraulic Motor | A2FM63 Cycloid Motor |
| Brake Type | Pneumatic Brake, Double Independent Circuit | Water Tank Volume (L) | 550L |
| Agitator Speed (r/min) | 20 | Bucket Capacity (m³) | 0.55 |
| Setup Parameters | Basic Configuration | Discharge Vibrator, Front and Rear Cameras, Display, Luxury Shock-absorbing Seat, Digital Instrument Panel, Timed Water Supply | |
| Length × Width × Height (mm) | 6340×1857×2920 | Optional Configuration | Electronic Weighing, Heating and Cooling Air Conditioner, Cement Trough |
| Tank Capacity (m³) | 1.93 | ||
| Tank Discharge (m³) | 1.5 | ||
| Curb Weight (kg) | 4500 | ||
| Ground Clearance (mm) | 292 | ||
| Hydraulic Oil Tank Volume (L) | 72 | ||
| Diesel Fuel Tank Volume (L) | 72 | ||
| Wheelbase (mm) | 2440 | ||
| Maximum Climbing (°) | 30 |
Detailed Specifications of 2m³Self Loading Mixer
| Configuration Item | Specification | Configuration Item | Specification |
| Tank/Power System | Standard | Driving/Operating System | Standard: |
| Engine Type | Yunnei 4102 Turbocharged | Cab Location | Front |
| Rated Power (KW) | 76kw | Air Conditioner | Optional |
| Variable Torque Box Model | JBJ-278 Split Torque Converter | Top Speed (km) | ≤ 35km |
| Drive Axle | Full-time Four-wheel Drive JBJ-10T | Slewing Bearing | Φ1100 Gear Drive |
| Tyre Size and Quantity | 25.5-16, 4 Wheels | Hydraulic Motor | A2FM63 Worm Motor |
| Brake Type | Pneumatic Brake, Double Independent Circuit | Water Tank Volume (L) | 750L |
| Agitator Speed (r/min) | 20 | Bucket Capacity (m³) | 0.65 |
| Setup Parameters | Basic Configuration | Discharge Vibrator, Front and Rear Cameras, Display, Luxury Shock-absorbing Seat, Digital Instrument Panel, Pneumatic Ladder, Hydraulic Discharge Port, Timed Water Supply, High-pressure Cleaning | |
| Length × Width × Height (mm) | 7040×2695×3001 | Optional Configuration | Electronic Weighing, Heating and Cooling Air Conditioner, Cement Trough |
| Tank Capacity (m³) | 3.45 | ||
| Tank Discharge (m³) | 2 | ||
| Curb Weight (kg) | 6200 | ||
| Ground Clearance (mm) | 270 | ||
| Hydraulic Oil Tank Volume (L) | 80 | ||
| Diesel Fuel Tank Volume (L) | 80 | ||
| Wheelbase (mm) | 2570 | ||
| Maximum Climbing (°) | 40 |
Detailed Specifications of 2.6m³Self Loading Mixer
| Configuration Item | Specification | Configuration Item | Specification |
| Tank/Power System | Standard | Driving/Operating System | Standard |
| Engine Type | Yuchai 4102 Turbocharged | Cab Location | Front |
| Rated Power (KW) | 78kw | Air Conditioner | Optional |
| Variable Torque Box Model | JBJ-278 Split Torque Converter | Top Speed (km) | ≤ 35km |
| Drive Axle | Full-time Four-wheel Drive JBJ-10T | Slewing Bearing | Φ1100 Gear Drive |
| Tyre Size and Quantity | 16-70-20, 4 Wheels; Optional: 6 Wheels | Hydraulic Motor | A2FM63 Worm Motor |
| Brake Type | Pneumatic Brake, Double Independent Circuit | Water Tank Volume (L) | 750L |
| Agitator Speed (r/min) | 20 | Bucket Capacity (m³) | 0.65 |
| Setup Parameters | Basic Configuration | Discharge Vibrator, Front and Rear Cameras, Display, Luxury Shock-absorbing Seat, Digital Instrument Panel, Pneumatic Ladder, Hydraulic Discharge Port, Timed Water Supply, Diesel Self-priming Pump, LED Lighting, High-pressure Cleaning | |
| Length × Width × Height (mm) | 7040×2732×3189 | Optional Configuration | Luxury Cab, Electronic Weighing, Heating and Cooling Air Conditioner, Cement Trough |
| Tank Capacity (m³) | 3.95 | ||
| Tank Discharge (m³) | 2.6 | ||
| Curb Weight (kg) | 6500 | ||
| Ground Clearance (mm) | 350 | ||
| Hydraulic Oil Tank Volume (L) | 95 | ||
| Diesel Fuel Tank Volume (L) | 95 | ||
| Wheelbase (mm) | 2570 | ||
| Maximum Climbing (°) | 40 |

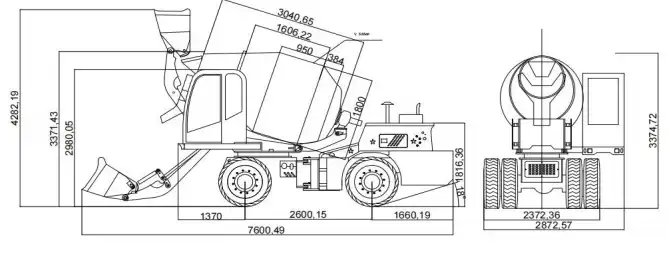

Detailed Specifications of 3.5m³Self Loading Mixer
| Configuration Item | Specification | Configuration Item | Specification |
| Tank/Power System | Standard | Driving/Operating System | Standard |
| Engine Type | Yuchai 4105 Turbocharged; Optional: Yuchai 4108 Turbocharged | Cab Location | Front; Optional: Rear |
| Rated Power (KW) | 85kw | Air Conditioner | Optional |
| Variable Torque Box Model | JBJ-320 Split Torque Converter | Top Speed (km) | ≤ 35km |
| Drive Axle | Full-time Four-wheel Drive JBJ-15T | Slewing Bearing | Φ1100 Gear Drive |
| Tyre Size and Quantity | 12R22.5, 6 Wheels | Hydraulic Motor | A2FM63 Piston Motor |
| Brake Type | Pneumatic Brake, Double Independent Circuit | Water Tank Volume (L) | 850L |
| Agitator Speed (r/min) | 20 | Bucket Capacity (m³) | 0.65 |
| Setup Parameters | Basic Configuration | Discharge Vibrator, Front and Rear Cameras, Display, Luxury Shock-absorbing Seat, Digital Instrument Panel, Pneumatic Ladder, Hydraulic Discharge Port, Timed Water Supply, Diesel Self-priming Pump, LED Lighting, High-pressure Cleaning | |
| Length × Width × Height (mm) | 7600×2872×3374 | Optional Configuration | Luxury Cab, Electronic Weighing, Heating and Cooling Air Conditioner, Cement Trough |
| Tank Capacity (m³) | 5.5 | ||
| Tank Discharge (m³) | 3.5 | ||
| Curb Weight (kg) | 8300 | ||
| Ground Clearance (mm) | 345 | ||
| Hydraulic Oil Tank Volume (L) | 120 | ||
| Diesel Fuel Tank Volume (L) | 120 | ||
| Wheelbase (mm) | 2600 | ||
| Maximum Climbing (°) | 40 |

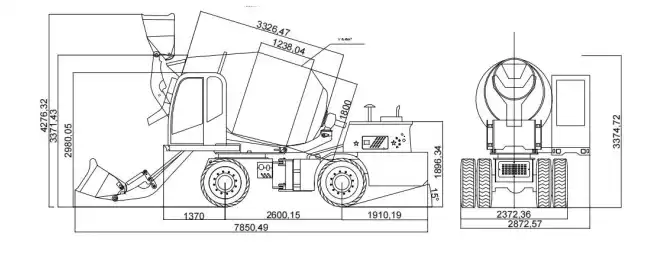

Detailed Specifications of 4m³Self Loading Mixer
| Configuration Item | Specification | Configuration Item | Specification |
| Tank/Power System | Standard | Driving/Operating System | Standard |
| Engine Type | Yuchai 4108 Turbocharged | Cab Location | Front |
| Rated Power (KW) | 91kw | Air Conditioner | Optional |
| Variable Torque Box Model | JBJ-320 Split Torque Converter | Top Speed (km) | ≤ 35km |
| Drive Axle | Full-time Four-wheel Drive JBJ-15T | Slewing Bearing | Φ1100 Gear Drive |
| Tyre Size and Quantity | 12R22.5, 6 Wheels | Hydraulic Motor | A2FM63 Piston Motor |
| Brake Type | Pneumatic Brake, Double Independent Circuit | Water Tank Volume (L) | 950L |
| Agitator Speed (r/min) | 20 | Bucket Capacity (m³) | 0.65 |
| Setup Parameters | Basic Configuration | Discharge Vibrator, Front and Rear Cameras, Display, Luxury Shock-absorbing Seat, Digital Instrument Panel, Pneumatic Ladder, Hydraulic Discharge Port, Timed Water Supply, Diesel Self-priming Pump, LED Lighting, High-pressure Cleaning | |
| Length × Width × Height (mm) | 7850×2872×3374 | Optional Configuration | Luxury Cab, Electronic Weighing, Heating and Cooling Air Conditioner, Cement Trough |
| Tank Capacity (m³) | 6.64 | ||
| Tank Discharge (m³) | 4 | ||
| Curb Weight (kg) | 9000 | ||
| Ground Clearance (mm) | 378 | ||
| Hydraulic Oil Tank Volume (L) | 120 | ||
| Diesel Fuel Tank Volume (L) | 120 | ||
| Wheelbase (mm) | 2600 | ||
| Maximum Climbing (°) | 40 |
Detailed Specifications of 5m³Self Loading Mixer
| Configuration Item | Specification | Configuration Item | Specification |
| Tank/Power System | Standard | Driving/Operating System | Standard |
| Engine Type | Dongfanghong 6105 Turbocharged; Optional: Weichai 6105 Turbocharged | Cab Location | Front |
| Rated Power (KW) | 92kw | Air Conditioner | Optional |
| Variable Torque Box Model | JBJ-428 Split Torque Converter | Top Speed (km) | ≤ 35km |
| Drive Axle | Full-time Four-wheel Drive JBJ-20T | Slewing Bearing | Φ1250 Gear Drive |
| Tyre Size and Quantity | 1200R24, 6 Wheels | Hydraulic Motor | A2FM63 Piston Motor |
| Brake Type | Pneumatic Brake, Double Independent Circuit | Water Tank Volume (L) | 1100L |
| Agitator Speed (r/min) | 20 | Bucket Capacity (m³) | 0.75 |
| Setup Parameters | Basic Configuration | Discharge Vibrator, Front and Rear Cameras, Display, Luxury Shock-absorbing Seat, Digital Instrument Panel, Pneumatic Ladder, Hydraulic Discharge Port, Timed Water Supply, Diesel Self-priming Pump, LED Lighting, High-pressure Cleaning | |
| Length × Width × Height (mm) | 8878×3050×3640 | Optional Configuration | Luxury Cab, Electronic Weighing, Heating and Cooling Air Conditioner, Cement Trough |
| Tank Capacity (m³) | 8.28 | ||
| Tank Discharge (m³) | 5 | ||
| Curb Weight (kg) | 10500 | ||
| Ground Clearance (mm) | 380 | ||
| Hydraulic Oil Tank Volume (L) | 130 | ||
| Diesel Fuel Tank Volume (L) | 130 | ||
| Wheelbase (mm) | 2860 | ||
| Maximum Climbing (°) | 40 |
Detailed Specifications of 5.5m³Self Loading Mixer
| Category | Parameter | Specification |
| Vehicle Parameters | Overall Dimensions (LxWxH) | 8450x3100x4850 |
| Wheelbase (mm) | 3350 | |
| Operating Weight (kg) | 11200 | |
| Drive Form | Axle Torque Converter | |
| Maximum Speed (km/h) | 42 | |
| Maximum Gradeability (°) | 45 | |
| Minimum Turning Radius (mm) | 6200 | |
| Minimum Ground Clearance (mm) | 380 | |
| Diesel Engine | Model | YUCHAI 6105 Turbo-charged |
| Rated Power | 92kw | |
| Gearbox | Model | ZL-428 Power Shift Gearbox |
| Gearshift | 4 Forward 4 Back | |
| Conventional Parameters | Equipment Model | JBC-55 |
| Service Refill Capacities | Fuel Tank | 160 litres |
| Total Hydraulic System Capacity | 160 litres | |
| Oil | 20 litres | |
| Parameters of Hydraulic System | Reducer | HUB-43 |
| Pump/Motor | Rexroth 90 & SUNNY 56 | |
| Water Supply System Parameters | Tank Volume | 850L |
| Water Supply | Time Relay | |
| Mixing and Unloading | Drum Geometrical Capacity | 7800L |
| Drum Rotation Speed | 20rpm | |
| Concrete Yield | 5.5m³/batch |
Detailed Specifications of 6.5m³Self Loading Mixer
| Category | Parameter | Specification |
| Vehicle Parameters | Overall Dimensions (LxWxH) | 8450x3050x4830 |
| Wheelbase (mm) | 2850mm | |
| Operating Weight (kg) | 13000kg | |
| Drive Form | Axle Torque Converter | |
| Maximum Speed (km/h) | 40km/h | |
| Maximum Gradeability (°) | 45° | |
| Minimum Turning Radius (mm) | 4800mm | |
| Minimum Ground Clearance (mm) | 350mm | |
| Diesel Engine | Model | YUCHAI 6105 Turbo-charged |
| Rated Power | 92-132kw | |
| Gearbox | Model | ZL-428 Power Shift Gearbox |
| Gearshift | 4 Forward 4 Back | |
| Conventional Parameters | Equipment Model | JBC-65 |
| Service Refill Capacities | Fuel Tank | 342 litres |
| Total Hydraulic System Capacity | 254 litres | |
| Oil | 22 litres | |
| Parameters of Hydraulic System | Reducer | KYO7-5 J |
| Pump/Motor | Rexroth & SUNNY, USA 63 | |
| Water Supply System Parameters | Tank Volume | 1300L |
| Water Supply | Time Relay | |
| Mixing and Unloading | Drum Geometrical Capacity | 9000L |
| Drum Rotation Speed | 16.5rpm | |
| Concrete Yield | 6.5m³/batch |
Detailed Specifications of Self Loading Pan Mixer
| Equipment Model | SYP-1.6 | SYP-2.0 |
| Rated Power | 76-78kw | 76-78kw |
| Drum speed (R/M) | 8-20 | 8-20 |
| Total hydraulic system capacity | 60 liters | 60 liters |
| Oil tank | 16 liters | 16 liters |
| Water tank | 550L | 550L |
| Water supply | Time relay | Time relay |
| Overall dimensions(L*W*H) | 4950*2950*1870 | 5500*2100*2900 |
| Wheelbase (mm) | 2900 | 2900 |
| Curb Weight (kg) | 4000 | 4000 |
| Drive Form | Torque converter | Torque converter |
| Max.Speed (km/h) | 30 | 30 |
| Maximum grade | 30º | 30º |
| Maximum turning radius (mm) | 5300 | 5300 |
| Minimum ground clearance (mm) | 380 | / |
SuniverseTech Self-Loading Mixer Model Choosing Guide
SuniverseTech self loaded concrete mixer models can be categorized into three capacity types – small, medium, and large.
Here is an overview of each with self loading mixer models and suitable applications:

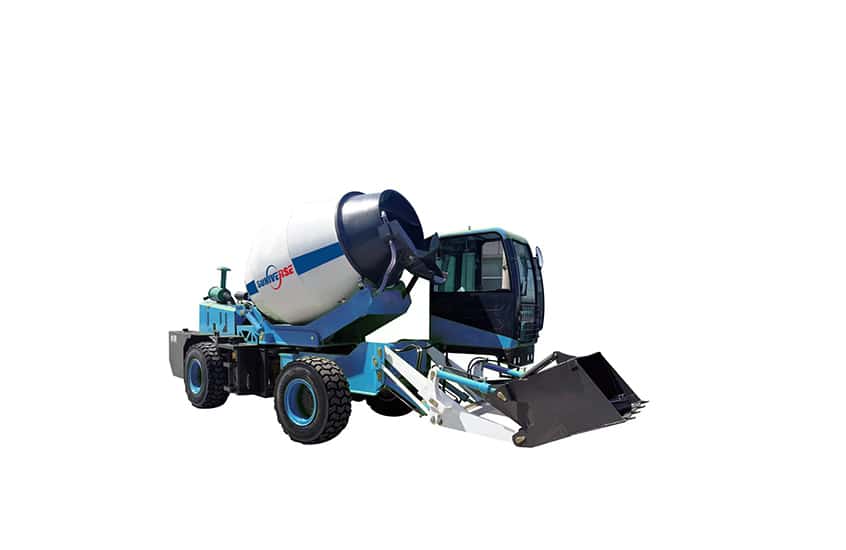

Small Capacity Mixers
The small capacity self-loading concrete mixers SuniverseTech offers model SY-1.5, and SY-2 range from 1.5m³ to 2m³ capacity per batch. Owing to the small batch sizes, they provide the flexibility to supply customized concrete as per needs to various small-scale construction applications such as:
- Sidewalk building and brickwork
- Landscaping in city gardens, parks
- Minor renovations and expansions of residential buildings
- Mixing of mortar for laying bricks, tiles, etc
Medium Capacity Mixers
The medium capacity self-loading mixers from SuniverseTech include models like SY-2.6 ~ SY-4.0 for self-loading drum-type mixers, and SYP-1.2, SYP-2.0 for self-loading pan mixers. Their hourly concrete output varies between 10.4m³ to 16m³ per hour. With the ability to transport higher per batch volumes, they can address higher demand across projects such as:
- Manufacturing precast items like panels, blocks, and pipes in factories
- Rural housing projects as an alternative to ready-mix concrete
- Road construction, small irrigation works
- Foundation laying at apartment construction sites
- Sewage canal-building projects
Large Capacity Mixers
The higher capacity self-loading mixer truck from SuniverseTech includes models SY-5.5 and SY-6.5 with volume capacities of 5.5m³ and 6.5m³ per batch. Due to the large batch size, they can deliver a substantially high output ranging between 22m³ to 26m³ of concrete per hour. These robust productivity levels make large mixers ideal for:
- Highway road and bridge construction to rapidly lay concrete
- Commercial building complexes and high-rise projects
- Mass manufacturing plants of concrete bricks, blocks, etc
- Port and jetty concrete works require non-stop supply
- Mining, metro rail, and large infrastructure ventures
The much higher output capacity helps complete massive-scale concrete requirements speedily. You will need to ensure sufficient space is available for machine movement. These self loader mixers also need high-capacity pumps or vibrators for tall buildings.

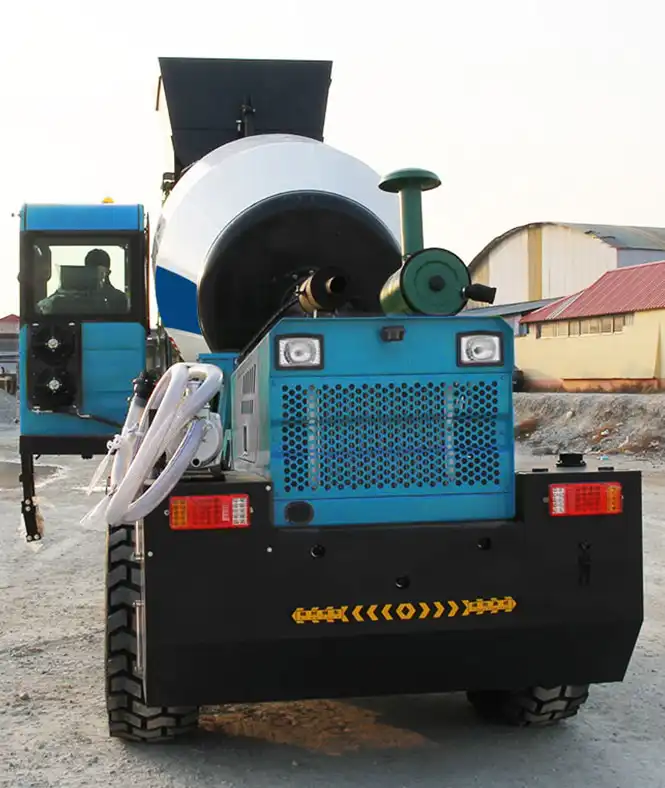

PRODUCT FEATURES
Unique Features
Integrated Functionality: The Self-Loading Concrete Mixer combines the functions of a traditional mixer, loader, and transporter into one machine, optimizing efficiency and reducing the need for multiple machines at the worksite.
On-Demand Mixing: It allows for on-the-spot mixing of concrete, providing fresh, high-quality mix whenever needed, which minimizes waste and ensures optimal use of materials.
Automated Operation: The mixer is designed with automated features that reduce the need for manual intervention, thereby enhancing productivity and reducing labor costs.
High Capacity: With a substantial mixing capacity, the Self-Loading Concrete Mixer can handle large volumes of concrete, making it suitable for both small and large-scale projects.
Customizable Settings: The mixer offers customizable settings that allow operators to adjust the mix according to specific project requirements, ensuring a tailored solution for each job.
Rugged and Durable Design: Built to withstand tough conditions, the Self-Loading Concrete Mixer is designed with a rugged and durable structure that ensures its longevity even in challenging environments and heavy-duty use.
Self Propelled Concrete Mixer Price
| Products | Reference Price Range |
| SY-1.5 Self Loading Concrete Mixer | $1,000 – $5,000 |
| SY-2.0 Self Loading Concrete Mixer | $2,000 – $8,000 |
| SY-2.6A/B/C/D Self Loading Concrete Mixer | $4,000 – $15,000 |
| SY-3.5A/B/C/D Self Loading Concrete Mixer | $5,000 – $25,000 |
| SY-4 Self Loading Concrete Mixer | $8,000 – $30,000 |
| SY-5.5 Self Loading Concrete Mixer | $10,000 – $40,000 |
| SY-6.5 Self Loading Concrete Mixer | $50,000 – $80,000 |
The price of a self loading concrete mixer can vary significantly, depending on several factors such as the capacity, features, brand, and the specific customization options chosen.
High-capacity models with advanced automation and customization features typically command a higher price. However, despite the initial cost, these mixers can provide significant savings over time through enhanced efficiency, reduced labor costs, and minimized waste.
It’s essential to consider not just the upfront cost but also the long-term value and return on investment. SuniverseTech is committed to providing competitively priced, high-quality self concrete transit mixer that deliver excellent performance and value for money.
Products Details
The self loading concrete mixer from SuniverseTech stands out with its integrated functionality, combining the roles of a traditional mixer, loader, and transporter into one efficient machine.
This feature, along with the ability for on-demand mixing, ensures fresh, high-quality concrete with minimal waste. The machine’s automated operation enhances productivity, reduces labor costs, and its high capacity makes it suitable for a range of projects.
Furthermore, customizable settings allow for tailored concrete mixes to meet specific project needs. With a rugged, durable design, the mixer is built to withstand tough conditions, ensuring longevity even in heavy-duty use.
Benefits of Our Service
At SuniverseTech, we place a high emphasis on service because we understand that our relationship with our customers extends far beyond the point of sale. We believe in fostering long-term partnerships, built on trust and mutual success.
Customized Solutions
Fast Delivery
Expert Technical Support
Training and Education
Preventive Maintenance
24/7 Customer Support
Systems of SuniverseTech Self-Propelled Concrete Mixer
SuniverseTech self-loading concrete mixers are a versatile, mobile solution for small and medium jobs. Their integrated design allows a single operator to efficiently mix, transport, and place concrete at job sites without needing other equipment.
Feeding System: Our self loading mixer truck feeding hopper has a large capacity and optimized shape to rapidly feed aggregates, cement, and water into the mixer drum. Its steep sides and lack of internal obstructions prevent clogging even with sticky concrete mixes. The fast, smooth loading process saves significant operator time and effort.
Mixing Drum and Blades: The rugged steel mixing drum has thick walls and durable alloy steel blades. It mixes batches thoroughly and quickly with its fast rotation speed. Blades spiral to the discharge point, forcing material through the drum as it turns. The drum continues slowly rotating during transit to prevent concrete separation or hardening. This consistent mixing quality results in homogeneous, smooth concrete loads.
Discharging System: A discharge chute with adjustable direction and height provides precise concrete placement. The chute swings 180 degrees to keep the mixer clear while maneuvering. The drum’s rapid reverse rotation completely empties each load for high productivity. Discharging takes less than a minute to avoid wasting delivered concrete.
Hydraulics: Industrial-grade hydraulic pumps, motors, and valves give the power, control, and reliability to handle demanding mixing and concrete loads. Hydraulics drive the drum, feeding system, and other motions. This responsive, durable system has long service intervals to minimize downtime.
Controls: Convenient levers in the protective cab and at the drum rear provide total mixing control. The operator precisely times and monitors each mixing, transporting, and pouring step. Controls immediately react to inputs, allowing quick adjustments on the go. Easy access from multiple points maximizes productivity and safety.
Cleaning System: High-pressure water jets wash the drum, blades, and discharge chute between loads to prevent buildup and clogs. The water also flushes debris from critical hydraulics. Fast, automated cleaning saves labor, makes changeovers quicker, and boosts uptime. It improves safety by reducing manual hose cleaning methods.
Self-loading concrete mixers are the most flexible, efficient, and money-saving among different types. Their ability to load, mix, and unload concrete in one machine makes work faster and simpler. They are very useful alone or with other big equipment like pumps.
How Does SuniverseTech Self-Loading Mixer Truck Work?
A self-loading concrete mixer completes the entire concrete preparation and handling process in a self-sufficient manner. Here are the detailed working steps:
Step 1. Load Ingredients: The large-capacity mixing drum is loaded with precise quantities of sand, stone, gravel, and cement. The operator uses the front bucket to scoop and deliver these ingredients from stockpiles on-site into the feeding hole. The built-in weighing scale displays quantities being added to maintain correct proportioning.
Step 2. Add Water: The mixer has an in-built water tank with piping connected to the mixing drum. The operator adds the required volume of water into the tank. This water is then automatically released into the drum during the mixing phase.
Step 3. Mix Concrete: Once loading is complete, the operator engages the concrete drum to rotate via the control panel levers. The rotation speed and time can be set as per specified grades to achieve a uniform blending of all materials and water into fresh concrete.
Step 4. Transport Concrete: The self-loading mixer has its own heavy-duty engine and sturdy wheels to transport the freshly mixed concrete. The operator simply drives it to the exact pouring location at the worksite preventing wastage.
Step 5. Monitor Concrete Output: A digital display panel inside shows how much concrete is present inside the mixer in real-time allowing the operator to track output.
Step 6. Discharge Concrete: Concrete is smoothly discharged via the front chute or the rotating drum flipped hydraulically as needed at the worksite – like into wall frameworks, pumping equipment, etc. No manual intervention is needed.
Different Types of Concrete Mixing Equipment
There are various types of concrete mixing and transporting equipment available. The common ones are:
Self-Loading Concrete Mixer: These mobile self loading concrete mixers can load materials on their own, mix concrete, and unload it without the need for any helper. This single machine does the job of a loader, mixer, and transport vehicle saving a lot of money, time, and labor. They can quickly produce the required quantity of concrete mix as per the needs of each site.
Concrete Mixer Trucks: these are trucks fitted with a concrete mixer drum. They carry the concrete mix made at the plant to the construction sites. The quantity is fixed per truckload. They have to go back to the plant again and again to get more loads, which consumes time.
Concrete Mixers: They are drums rotated by machines to mix cement, aggregates, and water. Workers need to feed the materials and discharge the mix manually. They cannot transport concrete. More laborers are needed to work with them.
Concrete Mixer Pump: They can pump and mix concrete. They fully depend on ready-mix plants and equipment like self-loading mixers to keep supplying concrete. No control over concrete quality and quantity as per changing site needs.
Self-loading concrete mixers are the most flexible, efficient, and money-saving among different types. Their ability to load, mix, and unload concrete in one machine makes work faster and simpler. They are very useful alone or with other big equipment like pumps.

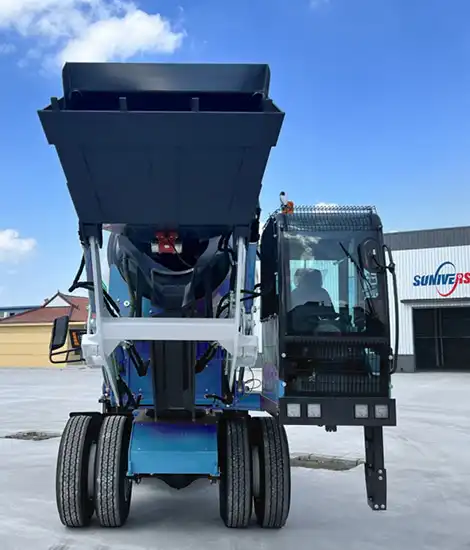

TESTIMONIAL
What Clients Say About
“From the moment it arrived on our site, this machine has significantly improved our efficiency. The integrated functionality of mixing, loading, and transporting has streamlined our operations, allowing us to complete projects faster than ever before. The on-demand mixing feature has been particularly beneficial, reducing waste and saving us a significant amount in material costs.”
Mamadou Ibrahim
From Senegal
SuniverseTech is committed to providing high-quality solutions andinnovative products to our customers.
