Impact Crusher
At SuniverseTech, our impact crusher machine stand at the forefront of processing technology. These powerful machines are adept at breaking down a variety of materials, including hard rock and recycled concrete, into smaller, uniform pieces, making them essential for aggregate, mining, and recycling operations.
The benefits of our impactor crushers include high efficiency, a reduction in operational costs, and an increase in long-term productivity. They are engineered for easy maintenance and feature user-friendly controls.
Our impact crusher plants are also versatile, capable of producing a range of material sizes to meet the diverse needs of our clients. With their robust design and precision engineering, they deliver consistent performance and reliable durability, making them a valuable asset for any project.
Models We Offer
Other Equipment You May Need:

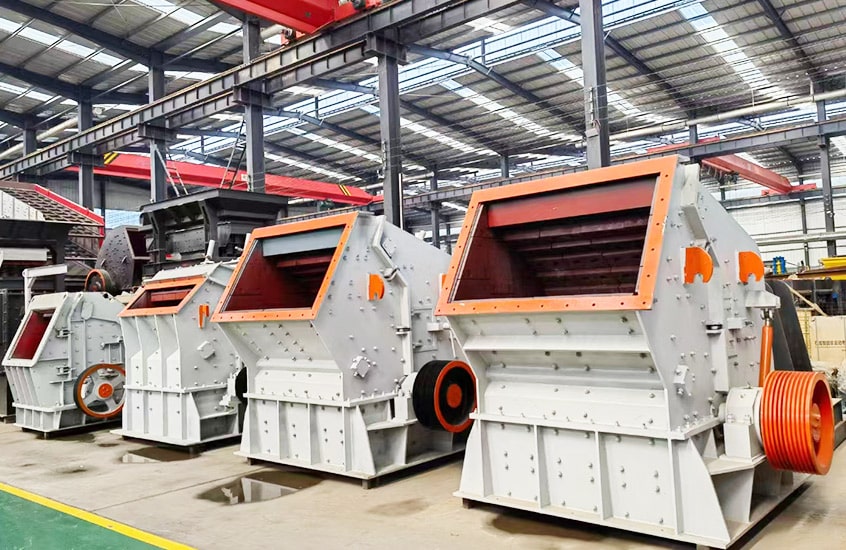

SuniverseTech Impact Crusher For Sale
SuniverseTech proudly offers two cutting-edge impact crushers for sale: the PF series impact crusher and the European series large diameter impact crusher.
These high-efficiency, energy-saving machines are engineered to handle compressive strengths not exceeding 350 MPa, making them perfect for crushing ore, limestone, slag, coke, and coal.
Ideal for applications in water and electricity, highway construction, and aggregate processing, they boast a large crushing ratio, uniform grain size, and excellent product shape.
The European series excels in crushing hard materials like granite and concrete, ensuring high-grade sand and gravel with its special structure, keyless connection, and high-chromium plate hammer.
Both series promise simplified processes, adjustable granule sizes, and are equipped with advanced dust elimination technology for environmental protection.
PF Series Impact Crusher
The PF series impact crusher from SuniverseTech offers unparalleled efficiency and precision in crushing, with a robust design tailored for medium-hard materials and industrial applications.
PRODUCTS DETAILS
PF Series Impact Crusher
Suitable Application: For water conservancy, highway construction, and artificial sand-making, adept at crushing various medium-hardness materials.
| Models | PF-1007 ~PF-1210, PFV-1214 ~ PFV-1820 |
| Feeding Size(mm) | ≤250 ~ ≤800 |
| Feed Opening Size(mm) | 400×730 ~ 1260×2040 |
| Processing Capacity(t/h) | 15-800 |
| Motor Power(kW) | 45-710 |
| Overall Dimensions(mm) | 2319x1654x2558 ~ 4400x3866x4009 |
Detailed Specifications of PF Series Impact Crusher
| Model | Specification | Feed Opening Size (mm) | Feeding Size (mm) | Capacity (t/h) | MotorPower (kw) | Overall Dimension(mm) |
| PF-1007 | φ1000×700 | 400×730 | ≤250 | 15-60 | 45 | 2319x1654x2558 |
| PF-1010 | φ1000 x 1050 | 400×1080 | ≤300 | 50-90 | 55 | 2319×2001×2558 |
| PF-1210 | φ1250×1050 | 450×1060 | ≤300 | 80-150 | 90 | 2585x2053x2809 |
| PFV-1214 | φ1250x 1400 | 450×1440 | ≤300 | 100-200 | 132 | 2582×2403×2809 |
| PFV-1315 | φ1320 x 1500 | 550×1530 | ≤350 | 210-220 | 185 | 2930x2761x3053 |
| PFV-1320 | φ1320 x 2000 | 610×1900 | ≤500 | 220-250 | 220 | 3224×3175×2706 |
| PFV-1520 | φ1500×2000 | 830×2040 | ≤700 | 300-550 | (220-250)×2 | 3959x3564x3330 |
| PFV-1820 | φ1800×2000 | 1260×2040 | ≤800 | 600-800 | 630-710 | 4400x3866x4009 |
Advantages of PF Series Impact Crusher
The PF series impact crusher by SuniverseTech stands as a paragon of engineering excellence in the realm of medium-hardness material reduction. Its design, which harmoniously blends durability with efficiency, ensures that it remains a steadfast ally in industrial crushing operations. One of the most significant advantages of the PF series secondary impact crusher is its versatility. It can handle a wide range of materials, from ores to limestone, with an ease that speaks to its superior design. The crusher achieves a large crushing ratio, which translates to reduced secondary crushing and the potential to lower investment costs for users.
Moreover, the uniformity of the crushed product is a testament to the meticulous attention to detail in the design of the tertiary impact crusher. This consistency in output size is not only crucial for the quality of the end product but also for the subsequent processing stages in any operation. The excellent end product shape further enhances the usability of the crushed material in various applications, such as in the production of high-quality aggregates.
The environmental footprint of the small impact crushers is also commendable. Equipped with advanced dust removal technology, it operates with a consciousness towards environmental protection, helping industries meet stringent regulatory standards while maintaining operational efficiency. This combination of performance, versatility, and environmental consideration makes the PF series impact crusher a valuable asset in any crushing task.
Working Principle of PF Series Impact Crusher
The working principle of an impact rock crusher is centered around the rapid conversion of kinetic energy into crushable force. Material enters the crushing chamber, where it encounters the high-speed rotating rotor. Upon contact, the rotor’s hammers or blow bars impart a high-speed impact force that fractures the material along its weakest planes or points of natural fissure. This initial impact breaks the material, which is then propelled against breaker plates or additional hard surfaces within the crushing chamber.
As the material bounces back into the path of the hammers, this secondary impact further reduces the size of the material, creating a cascade of size reduction events through repeated impacts. The unique design of the impact crusher allows for the adjustment of the final product size by changing the speed of the rotor, the gap between the impact rack and the rotor, and other parameters, thus providing high control over product granularity. This crushing action continues until the particles are reduced to the desired size, at which point they exit the machine through a designated discharge area, ready for further processing or use.
European Series Impact Crusher
The European series impact crusher features advanced technology for crushing hard materials like granite, with a unique structure and high-chromium plate hammer for superior durability.
PRODUCTS DETAILS
European Series Impact Crusher
Suitable Application: For finely crushing granite, concrete, and other hard materials, widely used in metallurgy, construction, and recycling industries.
| Models | LF150 ~ LF450 |
| Feeder Opening Size(mm) | 820×980 ~ 1350×1950 |
| Max Input Size(mm) | ≤500 ~ ≤900 |
| Processing Capacity(t/h) | 100-580 |
| Motor Power(kW) | 90-440 |
| Weight(kg) | 12000-29600 |
Detailed Specifications of European Series Impact Crusher
| Model | Feeder Opening Size(mm) | Max Input Size (mm) | Processing Capacity (t/h) | Power (kw) | Weight (kg) |
| LF150 | 820×980 | ≤500 | 100-200 | 90-200 | 12000 |
| LF250 | 960×1360 | ≤700 | 200-400 | 180-250 | 17000 |
| LF350 | 1050×1700 | ≤800 | 300-500 | 200-400 | 24000 |
| LF450 | 1350×1950 | ≤ 900 | 350-580 | 220-440 | 29600 |
Advantages of European Series Impact Crusher
The European series impact crusher, a product of SuniverseTech, distinguishes itself with a suite of features tailored to meet the rigorous demands of modern crushing operations. Its design specifically addresses the challenges of processing hard materials like granite and concrete, which require robust strength and precision. The European series showcases a unique structural design that eliminates the need for key connections, enhancing its overall reliability and reducing maintenance downtime. This structural integrity is complemented by the use of high-chromium plate hammers that not only exhibit exceptional wear resistance but also offer a longer service life, thereby extending the intervals between replacements.
One of the standout advantages of this crusher series is its ability to produce a final product with a superior shape. This is a critical factor for clients who demand high-quality aggregates for construction projects. The consistency and quality of the product ensure that materials meet the stringent specifications required for infrastructure works.
Furthermore, the European series impact crusher has been engineered to simplify the crushing process. Its ability to adjust the output particle size gives operators precise control over the end product, ensuring that the material is perfectly suited for its intended use. This level of control can lead to more efficient downstream processing, which can translate into cost savings and increased productivity.
Incorporating advanced dust removal technology, the European series also demonstrates SuniverseTech’s commitment to environmental stewardship. By minimizing airborne particulates during operation, the impact crusher not only protects the health of workers but also contributes to a cleaner environment around the production site. This feature is particularly important in an era where regulatory compliance and social responsibility are paramount.
In essence, the European series impact crusher offers a combination of durability, efficiency, and environmental consideration, making it a smart choice for businesses looking to balance operational demands with sustainability goals.
The Workings of European Series Impact Crusher
The European series impact crusher operates on the principle of impact energy to crush materials. Material is fed into the impact chamber through the feeding inlet, where it encounters the high-speed rotating rotor equipped with robust, high-chromium plate hammers. These hammers strike the incoming material, fracturing it upon impact against an adjustable impact plate, also known as a breaker plate.
The unique design of the European series allows for a larger feed opening, which enhances the intake of material and improves crushing efficiency. Once the material is struck by the hammers, it is then projected towards the impact plates where it undergoes a secondary crushing process. This results in a reduction of material into smaller pieces. The crusher’s special structural design eliminates the need for key connections, which contributes to its stability and durability under operational stress.
As the process continues, the material is subjected to repeated impacts within the crushing chamber until the desired particle size is achieved. The final crushed product is then discharged from the machine, having attained a uniform size and shape that is ideal for further processing or direct application. The European series impact crusher is particularly adept at producing a high-quality end product with excellent shape and consistency, making it a preferred choice in the production of aggregates and in recycling operations.
PRODUCT FEATURES
Unique Features
Rotor Design: Impact crushers often feature a robust rotor design that can handle varying types of materials and operational stresses. The rotors are equipped with durable wear-resistant hammers or blow bars that impact the feed material and break it down.
Adjustable Output Size: Many impact crushers offer the capability to adjust the size of the output material through various means such as adjusting the rotor speed, the gap between the impact plate and the rotor, or through the use of specialized grinding paths.
High Reduction Ratio: Impact crushers are capable of achieving a high reduction ratio, which means they can reduce large pieces of material to smaller sizes in a single pass, making them efficient for producing aggregates and for recycling operations.
Versatility: Impact crushers can process a wide range of materials, including hard, abrasive stones and softer materials like coal and limestone. They are also adaptable to stationary, mobile, or portable applications, making them suitable for a variety of work environments and material processing needs.
Products Details
Impact crushers are meticulously engineered to maximize efficiency and durability while minimizing maintenance needs. The design features a heavy-duty rotor made of high-grade steel, which is key to the machine’s ability to handle tough materials and operational stress. The rotor is fitted with a series of impact hammers or blow bars, which are made of materials like high-chromium alloy, offering wear resistance and longevity.
The housing of an impact crusher is robustly constructed, often with a modular design that allows for easy access and maintenance. The interior is lined with high-strength, abrasion-resistant materials that protect the structure and extend the crusher’s lifespan. The liners can be replaced or rotated to even out wear, which is a critical design detail that enhances the machine’s efficiency.
Adjustability is another focal point in the design of impact crushers. The clearance between the rotor and the impact plates can be adjusted hydraulically or mechanically, allowing operators to control the output size and shape of the crushed material. Furthermore, the crusher’s design might include a secondary impact zone where additional reduction can occur, improving the cubicity of the final product.
Benefits of Our Service
At SuniverseTech, we place a high emphasis on service because we understand that our relationship with our customers extends far beyond the point of sale. We believe in fostering long-term partnerships, built on trust and mutual success.
Customized Solutions
Fast Delivery
Expert Technical Support
Training and Education
Preventive Maintenance
24/7 Customer Support
Impact Crusher Prices
The pricing of impact crushers is influenced by several factors, including size, capacity, materials used in construction, brand, technological features, and market demand.
Entry-level models, often used for small-scale operations or as secondary crushers, can be priced from tens of thousands of dollars. These machines typically have lower capacity and are less robust than their more expensive counterparts.
Mid-range impact crushers, suitable for a variety of industrial applications, may cost anywhere from $10,000 to $50,000. These are more powerful, with higher throughput, and include additional features such as hydraulic adjustability, advanced electronic controls, and improved safety features.
High-end models, designed for large-scale operations and capable of handling extremely abrasive or hard materials with high efficiency, can exceed $70,000 or more. These premium machines incorporate the latest in crushing technology, offer superior production rates, and often come with comprehensive service agreements and warranties.
It’s important to note that the initial purchase price is just one part of the total cost of ownership. Operating costs, maintenance, and the availability of spare parts also significantly affect the long-term financial commitment to an impact crusher. Buyers must consider these factors and the crusher’s expected lifespan when evaluating the price.
Raw Materials That Our Machine Can Deal
Our impact crusher is engineered to handle a diverse range of raw materials, ensuring versatility across various sectors. Here’s a list of materials that our machine can effectively process:
- Natural Stones: Capable of crushing a variety of rocks, including granite, quartz, limestone, sandstone, and basalt, our machine can handle the rigors of processing hard stones.
- Concrete and Asphalt: Ideal for recycling operations, it can break down concrete slabs, asphalt paving, and even reclaimed concrete material into smaller, reusable aggregates.
- Ores and Minerals: It can reduce ores such as iron, copper, and gold for further processing in mining operations.
- Construction Debris: The machine can handle bricks, blocks, and other construction waste, turning them into useful sub-base materials.
- Ceramics and Glass: Our impact crusher can safely and efficiently crush glass and ceramic materials without clogging or damage.
- Coal and Slags: It can be used in energy and steel production industries to crush coal and slag, preparing them for further processing or disposal.
- Gypsum and Chemicals: The machine is also suitable for reducing gypsum for plaster production and crushing various chemicals for manufacturing processes.
- Industrial Scrap: It can help in reducing the size of metal scraps and industrial byproducts for easier handling and recycling.
Each material benefits from the crusher’s high reduction ratios and ability to produce uniform, shaped output, making it an invaluable asset in multiple industrial applications. The robust design ensures durability against abrasive materials, while the adjustable settings allow for precise control over the final product size and shape.
