Concrete Trailer Pump
SuniverseTech Powerful Pumping Solutions: Concrete diesel trailer pumps & concrete electric engine trailer pumps.
Get the pumping power and reliability you need for demanding work with our diesel concrete trailer pumps. For eco-friendly pumping with zero emissions, our electric trailer pumps match diesel performance.
All our pumps feature easy-to-use controls and durable construction built to last. SuniverseTech offers the latest in advanced concrete pumping productivity and safety. Contact us to upgrade your pumping capabilities.
Send Inquiry NowGet A Free Quote Now
Quick Guide
Start From
$
15,000
PRODUCTS

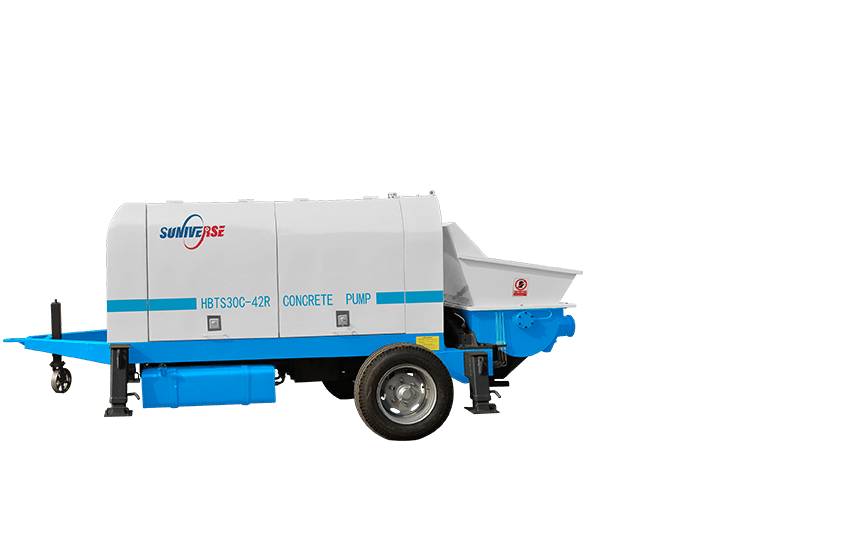

Concrete Trailer Pumps
SuniverseTech offers versatile trailer concrete pumps with diesel and electric options for precisely placing concrete with ease. Our innovative pumps allow you to transport and pump quality concrete to meet construction demands.
Designed with the operator in mind, our pumps feature an ergonomic layout and safety measures to protect your crew. Investing in our trailer concrete pumps brings reliable concrete conveying and placement to boost your productivity.
0.8m³
Max Capacity
32MPa
Max Pumping Pressure
Products We Offer
Other Equipment You May Need:
Our 4 Types of Concrete Pumps For Sale
SuniverseTech offers a complete range of advanced concrete pumps to streamline any construction project. Our pumps incorporate innovative technology for smooth, precise pouring and delivering high volumes across sites.
The Concrete Trailer Pump provides an easily movable solution for small jobs. The 2-in-one Concrete Mixer Pump increases efficiency by integrating mixing and pumping.
Our Boom Pump designed for large projects features vertical reach for accurate placement. The Truck Mounted Pump brings rapid concrete delivery across entire job areas.
Every SuniverseTech pump ensures a long-last design for durability and superior performance. By investing in our pumping solutions, you gain the assurance that the job will proceed safely while driving productivity. Contact our team to find the ideal pump to meet your needs.
29-100
m³/h
66-176kW Motor Power
6-18MPa Max Pumping Pressure
150-800m Conveying Distance
24-100
m³/h
45kW Motor Power
8MPa Max Pumping Pressure
120-500m Conveying Distance
37
m³/h
186kW Motor Power
32MPa Max Pumping Pressure
250-1,000m Conveying Distance
100
m³/h
82kW Motor Power
10MPa Max Output Pressure
15.4-22m Max Boom Height
PRODUCTS DETAILS
We Offer Various Types of Concrete Trailer Pumps For You
Our concrete trailer pumps offer you the power and accuracy to finish quality concrete pours on time. Strong diesel or electric motors reliably pump concrete wherever needed.
Happy Customers
98%
Concrete Diesel Trailer Pumps
Models:
SY-HB-40 ~HB-100
Max Concrete Output
29 ~100 m³/h
Max Pumping Pressure
6 ~ 18MPa
Count on SuniverseTech’s diesel concrete pumps when reliability is critical. Their powerful engines work anywhere, even remote areas lacking electricity.
Rugged diesel pumps transport and pour concrete steadily across challenging terrain.
Recommended Models:
SY-HB-40 Concrete Diesel Trailer Pumps For Small Projects
SY-HB-100 Concrete Diesel Trailer Pumps For Large Projects
Concrete Electric Trailer Pumps
Models:
SY-HB-T40E ~ HB-T80S
Max Concrete Output
24 ~100 m3/h
Max Pumping Pressure
8 ~ 18MPa
Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit Nemo enim ipsam voluptatem quia voluptas
Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit
Recommended Models:
SY-HB-T40E Concrete Electric Trailer Pumps For Small Projects
SY-HB-T80S Concrete Electric Trailer Pumps For Large Projects
HB-40 Diesel Trailer Pump
Max Theo. Concrete Output: 53/29m³/h
Diesel Engineering Power: 66kw
HB-60 Diesel Trailer Pump
Max Theo. Concrete Output: 61/38m³/h
Diesel Engineering Power: 82kw
HB-80 Diesel Trailer Pump
Max Theo. Concrete Output: 98/59m³/h
Diesel Engineering Power: 129kw
HB-90 Diesel Trailer Pump
Max Theo. Concrete Output: 92/55m³/h
Diesel Engineering Power: 140kw
HB-100 Diesel Trailer Pump
Max Theo. Concrete Output: 100/58m³/h
Diesel Engineering Power: 176kw
Concrete Electric Trailer Pumps
Models:
SY-HB-T40E ~HB-T80S
Max Concrete Output
24 ~100 m³/h
Max Pumping Pressure
8 ~ 18MPa
SuniverseTech’s electric concrete pumps deliver eco-friendly, quiet pumping. Their energy-efficient motors and easy mobility make electric pumps ideal for indoor jobs or urban sites.
With sustainable operation and smooth flows, our electric pumps improve concrete placement productivity. Simple controls allow anyone to pump with ease.
Specifications of Concrete Trailer Pumps
Detailed Specifications of Concrete Diesel Trailer Pumps
Model | SY-HB40 | SY-HB60 | SY-HB80 | SY-HB90 | SY-HB100 |
Max. Theo. Concrete Output (m³/h) | 53/29 | 61/38 | 98/59 | 92/55 | 100/58 |
Max.Concrete Pumping Pressure (MPa) | 12/6 | 12/7 | 12.5/7.5 | 9/16 | 10/18 |
The Biggest Transportation (m) Vertically/Level | 150/500 | 150/600 | 150/600 | 160/700 | 180/800 |
Motor Power (kW) | 66 | 82 | 129 | 140 | 176 |
Concrete Cylinder Diameter×Stroke (mm) | Φ160×1300 | Φ180X1300 | Φ200×1650 | Φ200×1800 | Φ200×1800 |
Main Oil Cylinder Diameter×Stroke (mm) | Φ100×1300 | Φ110X1300 | Φ125×1650 | Φ140/1800 | Φ150×1800 |
Oil Tank Capacity (L) | 90 | 90 | 150 | 150 | 150 |
Feeding Hopper Capacity (m³) | 0.6 | 0.7 | 0.8 | 0.8 | 0.8 |
Feeding Height (mm) | 1250 | 1300 | 1450 | 1450 | 1450 |
Outlet Diameter (mm) | Φ125 | Φ150 | Φ180 | Φ180 | 180 |
Max. aggregate Diameter (mm) | 40 | 40 | 50 | 50 | 50 |
Dimensions: LW×H (mm) | 4800x1750x1900 | 4800x1750x1900 | 6000x2000x2200 | 6000x2000x2200 | 6500x2000x2300 |
Overall Weight (kg) | 3500 | 4200 | 5800 | 6500 | 6800 |
Detailed Specifications of Concrete Electric Trailer Pumps
Model | SY-HB-T40E | SY-HB-T50 | SY-HB-T60 | SY-HB-T80 | SY-HB-T80S |
Max. Theo. Concrete Output (m³/h) | 24-30 | 30 | 51/30 | 81/48 | 100/58 |
Max.Concrete Pumping Pressure (MPa) | 8-10 | 12/7 | 12.5/7.5 | 9/16 | 10/18 |
The Biggest Transportation (Vertically/Level) | 150-400 | 150/600 | 150/600 | 160/700 | 180/800 |
Motor Power (kW) | 45 | 82 | 129 | 140 | 176 |
Concrete Cylinder Diameter×Stroke (mm) | Φ160×1000 | Φ180X1300 | Φ200×1650 | Φ200×1800 | Φ200×1800 |
Main Oil Cylinder Diameter×Stroke (mm) | Φ100×1000 | Φ110X1300 | Φ125×1650 | Φ140/1800 | Φ150×1800 |
Feeding Hopper Capacity (m³) | 0.6 | 0.7 | 0.8 | 0.8 | 0.8 |
Feeding Height (mm) | 40 | 40 | 50 | 50 | 50 |
Outlet Diameter (mm) | Φ125-150 | Φ150 | Φ180 | Φ180 | Φ180 |
Max. Aggregate Diameter (mm) | 1250 | 1300 | 1450 | 1450 | 1450 |
Dimensions: LxW×H (mm) | 4200x1750x1600 | 4600x1750x1900 | 5950x2000x2200 | 5950x2000x2200 | 5950x2000x2000 |
Overall Weight (kg) | 2500-2800 | 3000 | 5700 | 6200 | 6500 |
PRODUCT FEATURES
Unique Features
SuniverseTech’s concrete pumps feature innovative designs for smooth flow and reliable performance.
Smooth Operations – The stamped hopper and vibrating inlet prevent buildup when feeding the pump for reliable, smooth concrete flow.
Durable Construction – An integrated lubrication system directly oils all pivot joints, doubling equipment lifespan for enhanced durability.
Efficiency-Focused Design – Operators have dual panel and remote modes to optimize concrete pumping efficiency across all work conditions.
Heavy-Duty Cooling – A robust wind cooling system maintains safe oil temps up to 45°C without water for leading safety.
Comprehensive Circuit Security – An independent junction box enables multifaceted circuit connections while protecting electrical systems.
Concrete Pumps Price
Products | Reference Price Range |
Concrete Diesel Trailer Pumps | $15,000 ~ $45,000 |
Concrete Electric Trailer Pumps | $20,000 – $40,000 |
The price of our concrete trailer pumps depends on several key factors. We aim to provide competitive quotes tailored to your specific requirements.
The pump model and its capabilities are major considerations. Trailer pumps come in different configurations including diesel or electric power, water or air cooling systems, and output sizes. More heavy-duty or high-performance units understandably increase costs.
Component quality also affects pricing. We use high-grade parts from leading global brands to ensure maximum reliability and longevity. The precise engineering of components like S-valves further optimizes efficiency. While impacting price, our focus on quality provides outstanding value.
Please note the prices listed are reference prices. We encourage you to contact our sales team for a customized quotation meeting your exact project needs. Our experts work closely with all clients to determine the perfect concrete trailer pump selection based on individual specifications, budgets, and applications.
Products Details
Our concrete trailer pumps stand out for their high pumping power, robust construction, and user-friendly controls.
They offer unmatched strength, capable of handling up to 100 cubic meters of concrete per hour—accelerating projects with fast placement. Their trailer-mounted design also enables exceptional mobility between construction sites for maximum efficiency.
Moreover, the pumps integrate optimized components, streamlining concrete delivery. Strategically placed ergonomic controls significantly improve ease of use—reducing mistakes and allowing workers to achieve higher productivity.
These features make our trailer pumps a reliable solution for all types of construction, providing the versatility and performance to drive projects forward. Their innovative durability, mobility, and usability translate to invaluable efficiency gains.
Benefits of Our Service
We strive to provide exceptional service to each and every customer. Whether you are considering a purchase, have recently bought a product, or are a long-time customer in need of assistance, you can rely on receiving our best service.
Customized Solutions
One-on-one Service from Our Professionals
24h Online Communication
Installation Support
7 Days Fast Shipping
Tech-Support
SY-HB-40
Concrete Trailer Pumps Working In Tanzania
Our SY-HB-40 concrete trailer pump has recently seen success on construction sites in Tanzania. Customers have used it to increase their pouring efficiency.
SY-HB-100
Concrete Trailer Pumps for Kenya
Our SY-HB-100 concrete trailer pump is ready for shipping, featuring high versatility powered by a superior diesel engine to enable efficient, high-quality concrete placement for clients in Kenya.
SY-HB-60
Diesel Concrete Pump Arrived In Uganda
We have exported SY-HB-60 concrete trailer pumps to our customers in Uganda. These reliable trailer pumps were selected for their efficiency and suitability for the projects.
TESTIMONIAL
What Clients Say About
“We build complex projects that need strong equipment and good service. and SuniverseTech gives us both. We bought trailer concrete pumps from them and they customized the pumps to what we needed and sent them fast. Whenever we had any problem, SuniverseTech came quickly and fixed it so we did not waste time. They really support what they sell.”
Babatunde
From the Nigeria
